Compare DS-2CD2346G2H-IU(2.8mm)(eF) with DS-2CD4685F-IZ(H)(S) (2)

Download PDF version Back to Search Results

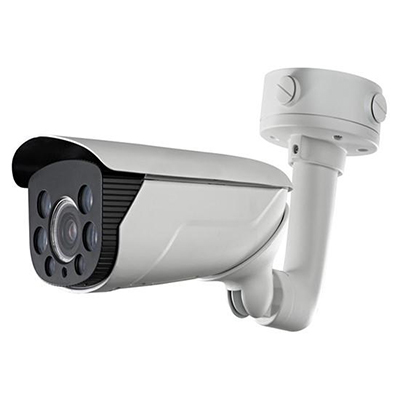

	Hikvision DS-2CD2346G2H-IU(2.8mm)(eF)	Hikvision DS-2CD4685F-IZ(H)(S)
	Contact manufacturer	Contact manufacturer
	Hikvision DS-2CD2346G2H-IU(2.8mm)(eF)	Hikvision DS-2CD4685F-IZ(H)(S)
	Contact manufacturer	Contact manufacturer
Colour Type	Colour / Monochrome	Colour / Monochrome
Resolution	4MP	8 MP
Sensitivity Lux	Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR	0.009 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.4, AGC ON), 0 Lux with IR
Voltage	12 V DC, PoE	24 V AC / PoE
Focal Length mm	2.8 mm	2.8 ~ 12
Wide Dynamic Range	✔	✔
Back Light Compensation	✔	✔
Auto Gain Control	✔	✔
White Balance	✔	--
Electronic Shutter Range	1/3 s ~ 1/100,000 s	1 ~ 1/100,000s
S/ N (Signal/ Noise) Ratio dB	? 52 dB	--
Chip Inch Size	--	1/2
Digital (DSP)	--	✔
Specialist Type	--	Megapixel
Auto Iris	--	✔
Direct Drive	--	✔
Motion Activated	--	✔
Image Frame Rate	--	30 fps
Inclusion DVR/ Web Server	--	✔
