Surveillance cameras Comparison: Vicon, Bosch (4)

Download PDF version Back to Search Results

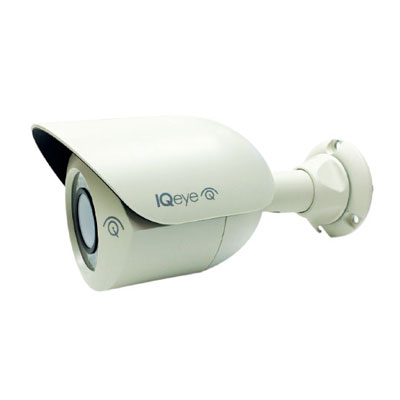

	Vicon IQR52NR-F9	Bosch LTC0455/51	Bosch TC220PSX24	Bosch VTI-216V04-1
Contact manufacturer	Contact	Contact	Contact	Contact
	Vicon IQR52NR-F9	Bosch LTC0455/51	Bosch TC220PSX24	Bosch VTI-216V04-1
Contact manufacturer	Contact	Contact	Contact	Contact
Chip Inch Size "	1/3	1/3	--	1/3
Colour Type	True Day / Night	Colour / Monochrome	--	Colour / Monochrome
Resolution TVL	2 MP	540	--	520
Digital (DSP)	✔	✔	--	✔
Specialist Types	Infrared	--	--	Infrared
Sensitivity lux	<0.05	0.018	--	0.0
Voltage	12 V DC, PoE	230 V AC	24	12 V DC / 24 V AC
Motion Activated	✔	✔	--	--
Focal Length mm	3.6	--	--	3.8 ~ 9.5
Back Light Compensation	✔	✔	--	--
White Balance	✔	✔	--	--
Auto Iris	--	✔	--	✔
Direct Drive	--	✔	--	--
Lens Mount	--	C/CS	--	--
Picture Elements HxV	--	752 x 582	--	752 x 582
S/ N (Signal/ Noise) Ratio dB	--	50	--	45
Synchronisation	--	Line-Lock	--	--
Signal Mode	--	PAL	--	--
Accessories	--	--	Power supply unit	--
Gamma Correction	--	--	--	0.45
Electronic Shutter range	--	--	--	1/50 ~ 1/100,000
