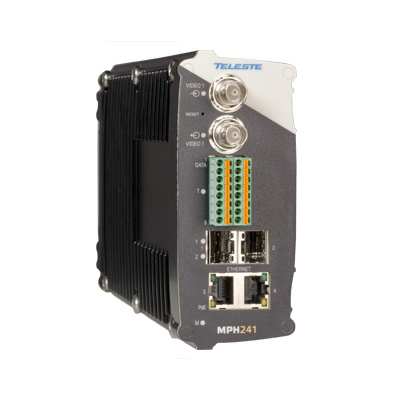

Teleste MPH241 One Channel Stand-alone H.264 Video Encoder

Technical Specification

Features:

Make: Teleste
Model code: MPH241
Video Inputs: 1
Other Inputs: 2
Data Input: Yes

Additional info:

Teleste MPH241 one channel stand-alone H.264 video encoder delivers up to four independent video streams at full frame rate and full SD resolution using H.264, MPEG-2, MPEG-4 or MJPEG, or any combination of these. This allows security professionals to optimize each of the individual streams for its purpose, e.g. live viewing, recording, web applications, PDA etc. It also ensures safe and seamless migration path from any legacy hybrid video network towards fully H.264 based network. The built-in EIA RS data channels provide multi-vendor PTZ camera control through Ethernet network. The alarm inputs and output can be used to trigger events and control external devices.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Teleste
Manufacturer	Teleste Corporation
Category	Video Surveillance>Video servers (IP transmission)
Model code	MPH241
Video Inputs	1
Other Inputs	2
Data Input	Yes
Audio Input	Yes
Alarm Input	Yes
No of Other Outputs	1
Compression Type	H.264/MPEG-4
Network Protocols	RTP, UDP, TCP, IP, SAP, RTSP
Interface	10/100/1000BASE-T
Image per second (IPS)	30
Control	PTZ
Physical Specifications	Dimensions mm: 53 x 130 x 254 Weight g: 1,900
Electrical Specifications	Power Consumption: 13 W Voltage: 28 V DC
Environmental Specifications	Operating Temperature ^oC: -34 ~ +74 C (-29 ~ +165 F)
Video Inputs Overview	BNC female CVBS & HD video
Additional info	Teleste MPH241 one channel stand-alone H.264 video encoder delivers up to four independent video streams at full frame rate and full SD resolution using H.264, MPEG-2, MPEG-4 or MJPEG, or any combination of these. This allows security professionals to optimize each of the individual streams for its purpose, e.g. live viewing, recording, web applications, PDA etc. It also ensures safe and seamless migration path from any legacy hybrid video network towards fully H.264 based network. The built-in EIA RS data channels provide multi-vendor PTZ camera control through Ethernet network. The alarm inputs and output can be used to trigger events and control external devices.
