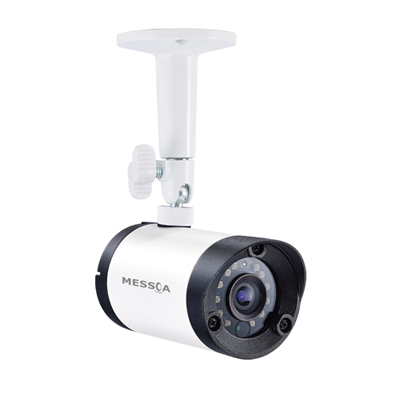

Messoa NCR770-HP1-CN-MES 1/4 Inch 1MP IR Bullet Network Camera

Technical Specification

Features:

Make: Messoa
Model code: NCR770-HP1-CN-MES
Chip Inch Size: 1/4
Color Type: Color / Monochrome
Resolution: 1 MP

Additional info:

Messoa NCR770-HP1-CN-MES is a mini-sized, high-performance bullet-type megapixel IR camera designed for maximum flexibility and plug-and-play integration with MESSOA Lite Series NVR. Measuring just 10cm in length, the compact yet versatile form factor makes the camera a perfect solution for applications demanding discreet and non-intrusive installations, such as boutiques and retail shops. The built-in IR LED provides night vision up to 10 meters. The IP67-rated water-resistant metallic housing also adds assurance to the camera’s durability and reliable operation in a wide range of indoor/outdoor environments.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Messoa
Manufacturer	MESSOA Technologies Inc.
Category	Video Surveillance>IP cameras
Model code	NCR770-HP1-CN-MES
Chip Inch Size	1/4
Color Type	Color / Monochrome
Resolution	1 MP
Digital (DSP)	Yes
Specialist Type	Infrared
Electrical Specifications	Voltage: 12 V DC Power Consumption: 9 W
Focal Length mm	4.2
Mount Type	Wall
Wide Dynamic Range	Yes
Picture Elements HxV	1280 x 800
Network Properties	Image Frame Rate: 30 fps Interface: 10Base-T/100Base-TX, RJ-45 Network Protocols: IPv4, HTTP, HTTPS, SMTP, FTP, DHCP, NTP, TCP/IP, UPnP, RTSP/RTP/RTCP, DNS, DDNS, PPPoE, IGMP, QoS, Bonjour, Samba, Multicast
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/960 ~ 1/30 sec
Signal Mode	PAL
Mini or Compact	Yes
Compression Type	H.264/MPEG4/Motion JPEG
Physical Specifications	Weight g: 548 Dimensions mm: 60 x 114
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 20 ~ 90
System Requirements	Web Browser: IE Browser 8.0 or 9.0
Additional info	Messoa NCR770-HP1-CN-MES is a mini-sized, high-performance bullet-type megapixel IR camera designed for maximum flexibility and plug-and-play integration with MESSOA Lite Series NVR. Measuring just 10cm in length, the compact yet versatile form factor makes the camera a perfect solution for applications demanding discreet and non-intrusive installations, such as boutiques and retail shops. The built-in IR LED provides night vision up to 10 meters. The IP67-rated water-resistant metallic housing also adds assurance to the camera’s durability and reliable operation in a wide range of indoor/outdoor environments.
