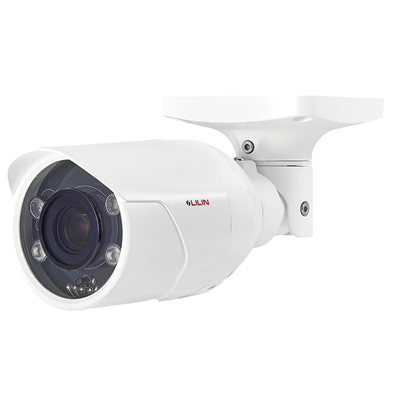

LILIN ZSR8122EX3 2MP 60fps Auto Focus IR IP Bullet Camera

Technical Specification

Features:

Make: LILIN
Model code: ZSR8122EX3
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution: 1080p

Additional info:

60fps @ 1080P resolution Micro SD/SDHC/SDXC card recording supported HDR function up to 120dB IP66 rain and dust resistant 35-meter infrared night vision

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	LILIN
Manufacturer	LILIN
Category	Video Surveillance>IP cameras
Model code	ZSR8122EX3
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution	1080p
Digital (DSP)	Yes
Specialist Type	Infrared
Sensitivity Lux	0 ~ 0.05
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: PoE+ Power Consumption: 16.6W
Focal Length mm	2.8 ~ 12
Wide Dynamic Range	Yes
Picture Elements HxV	1952 x 1266
Network Properties	Image Frame Rate: 60 fps Interface: 10/100/1000 Mbps Base-T, RJ-45 Network Protocols: IPv4, IPv6, TCP, UDP, HTTP, SMTP, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profile S, SNMP, SIP, Bonjour
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/30(1/25)s〜1/30000s
Compression Type	H.264 main and high profile, Motion JPEG
Physical Specifications	Weight g: 1030 Dimensions mm: 103 x 103 x 228
Environmental Specifications	Operating Temperature ^oC: -40 ~ +50 C (-40 ~ +122 F) Protection: IP66
System Requirements	Operating System: Embedded Linux 3.8.0 Web Browser: Microsoft® Internet Explorer® 6.0 and later
Additional info	60fps @ 1080P resolution Micro SD/SDHC/SDXC card recording supported HDR function up to 120dB IP66 rain and dust resistant 35-meter infrared night vision
