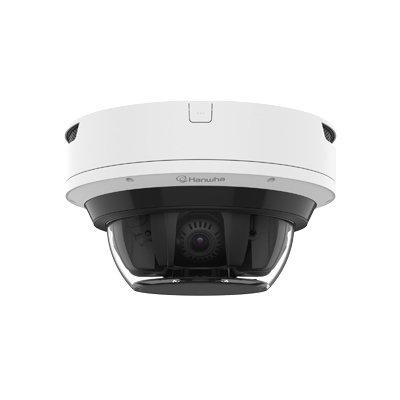

Hanwha Vision PNM-C32084RQZ-8XE4T-W IP camera Specifications

Hanwha Vision 4CH AI Multi-sensor Camera with WAVE VMS

Product Profile

The Wisenet PNM-C32084RQZ-8XE4T-W is a powerful, multi-sensor camera designed to provide superior video management and analytics for a wide range of security applications. Built on the NVIDIA Jetson™ platform, this 4-channel AI camera comes with an integrated Wisenet WAVE VMS, allowing for seamless video surveillance and management. It includes 4TB of onboard storage, supporting up to 16 video stream recordings simultaneously. This makes it an ideal solution for high-demand environments that require both performance and reliability.

Equipped with Wisenet’s advanced AI features powered by NVIDIA’s Orin NX 8GB GPU, the PNM-C32084RQZ-8XE4T-W enhances security with intelligent video analytics, even for non-AI cameras, through the Wisenet WAVE AI Plugin. Users benefit from a 30-day free trial that covers up to 4 streams, giving them the ability to experience the system's full capabilities. Additionally, the camera’s motorized varifocal lenses and PTRZ (Pan, Tilt, Rotate, Zoom) functionality ensure flexible and easy installation and adjustments.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hanwha Vision
Manufacturer	Hanwha Vision America
Category	Video Surveillance>IP cameras
Model code	PNM-C32084RQZ-8XE4T-W
Chip Inch Size	1/1.8
Color Type	Color / Monochrome
Resolution	3840 x 2160
Sensitivity Lux	Color: 0.07Lux / BW: 0Lux
Electrical Specifications	Voltage: HPoE Power Consumption: Max 66.0W
Focal Length mm	4.38 ~ 9.33 mm
Mount Type	Wall, Ceiling, Pole, Corner, Parapet
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/5 ~ 1/12,000sec
Zoom	Yes
Compression Type	H.265 / H.264: Main / Baseline / High, MJPEG
Network Properties	Interface: Metal Shielded RJ-45 (10 / 100 / 1000 BASE-T) Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Physical Specifications	Weight g: 6100g Dimensions mm: ø315 x 180
Environmental Specifications	Protection: IP66, NEMA4X, IK10 Operating Temperature ^oC: -40 ~ +55 C (-40 ~ +131F) Operating Humidity %: 0 ~ 100
Additional info	4.38~9.33mm (2.13x) motorized varifocal lenses PTRZ (Pan, Tilt, Rotate, Zoom) control of each lens for easy installation and adjustment 4-channels x 8MP@20fps (AI Off, H.265/H.264) / 4-channels x 8MP@15fps(AI ON, H.265/H.264) WiseIR 25m (82.02ft) range Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle (Type: car/bus/truck/motorcycle/bicycle, Color), Person (clothing color) BestShot image of detected objects Analytics events based on AI engine: - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Standard Analytics events: - Defocus detection, Motion detection, Tampering, Virtual area (Appear/Disappear) - Audio detection, Sound classification (with optional Network I/O box SPM-4210) AI-based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ Flip, Mirror, Hallway view(90°/270°) - each channel individually MQTT support microSD/SDHC/SDXC 2 slots: Maximum 1TB (2 x 512GB, not for WAVE storage) Next-level cybersecurity (TPM 2.0 with FIPS 140-2 level 2) Tamper switch triggers in case dome cover is removed
Download PDF version Download PDF version

Make

Hanwha Vision

Manufacturer

Hanwha Vision America

Category

Video Surveillance>IP cameras

Model code

PNM-C32084RQZ-8XE4T-W

Chip Inch Size

1/1.8

Color Type

Color / Monochrome

Resolution

3840 x 2160

Sensitivity Lux

Color: 0.07Lux / BW: 0Lux

Electrical Specifications

Voltage: HPoE
Power Consumption: Max 66.0W

Focal Length mm

4.38 ~ 9.33 mm

Mount Type

Wall, Ceiling, Pole, Corner, Parapet

Wide Dynamic Range

Yes

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

1/5 ~ 1/12,000sec

Zoom

Yes

Compression Type

H.265 / H.264: Main / Baseline / High, MJPEG

Network Properties

Interface: Metal Shielded RJ-45 (10 / 100 / 1000 BASE-T)
Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT

Physical Specifications

Weight g: 6100g
Dimensions mm: ø315 x 180

Environmental Specifications

Protection: IP66, NEMA4X, IK10
Operating Temperature ^oC: -40 ~ +55 C (-40 ~ +131F)
Operating Humidity %: 0 ~ 100

Additional info

4.38~9.33mm (2.13x) motorized varifocal lenses
PTRZ (Pan, Tilt, Rotate, Zoom) control of each lens for easy installation and adjustment
4-channels x 8MP@20fps (AI Off, H.265/H.264) / 4-channels x 8MP@15fps(AI ON, H.265/H.264)
WiseIR 25m (82.02ft) range
Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle (Type: car/bus/truck/motorcycle/bicycle, Color), Person (clothing color)
BestShot image of detected objects
Analytics events based on AI engine: - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Standard Analytics events: - Defocus detection, Motion detection, Tampering, Virtual area (Appear/Disappear) - Audio detection, Sound classification (with optional Network I/O box SPM-4210)
AI-based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
Flip, Mirror, Hallway view(90°/270°) - each channel individually
MQTT support
microSD/SDHC/SDXC 2 slots: Maximum 1TB (2 x 512GB, not for WAVE storage)
Next-level cybersecurity (TPM 2.0 with FIPS 140-2 level 2)
Tamper switch triggers in case dome cover is removed
