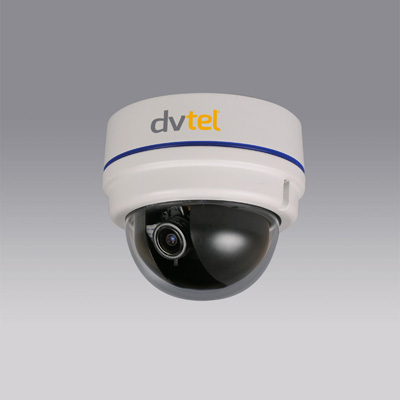

DVTEL CM-4221-10-I Day/night HD Indoor Mini-dome Fixed Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

DVTEL CM-4221-10-I Day/night HD Indoor Mini-dome Fixed Camera

Features:

Make: FLIR Systems
Previously known as: DVTEL
Model code: CM-4221-10-I
Chip Inch Size: 1/3
Color Type: Color / Monochrome

Additional info:

The DVTEL CM-4221-10-I is a day/night HD indoor mini-dome fixed camera. It has Iris control, tamper detection, privacy zones, 3D noise reduction, wide dynamic range.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	FLIR Systems
Manufacturer	FLIR Systems
Previously known as	DVTEL
Category	Video Surveillance>Dome cameras
Model code	CM-4221-10-I
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	1920 × 1080
HD	Yes
Dome Type	Static
Sensitivity lux	0.3
Indoor/Outdoor	Indoor
Digital (DSP)	Yes
Electrical Specifications	Voltage: 24 V AC Power Consumption: 6 W
Focal length	3 ~ 9 mm
Compression	H.264, MJPEG
White Balance	Yes
Electronic Shutter range	1.0 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB	±50
Built-in IR LED	Yes
Network Properties	Network Protocols: IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 151 x 130 Weight g: 800
Environmental Specifications	Operating Temp ^oC: 0 ~ 50 Operating Humidity %: 0 ~ 95 Protection: IP66
System Requirements	Web Browser: Internet Explorer 6.0+
Additional info	The DVTEL CM-4221-10-I is a day/night HD indoor mini-dome fixed camera. It has Iris control, tamper detection, privacy zones, 3D noise reduction, wide dynamic range.
Download PDF version Download PDF version
