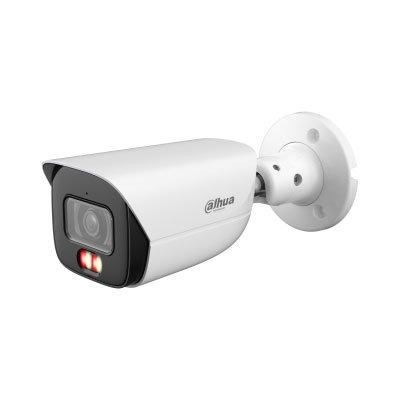

Dahua Technology IPC-HFW3849E-S-IL 8MP Smart Dual Light Fixed-Focal Bullet WizSense Network Camera

Technical Specification

This product model is not available in this region

Dahua Technology IPC-HFW3849E-S-IL 8MP Smart Dual Light Fixed-Focal Bullet WizSense Network Camera

Features:

Make: Dahua Technology
Model code: IPC-HFW3849E-S-IL
Series: WizSense 3 Series
Chip Inch Size: 1/2.7
Color Type: Color / Monochrome

Additional info:

8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image Outputs max. 8 MP (3840 ×2160)@25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic 12 VDC/PoE power supply IP67 protection SMD (smart motion detection) 4.0 Supports AI SSA SMD area can be set in warm light areas that support triggering alarms

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	IPC-HFW3849E-S-IL
Series	WizSense 3 Series
Chip Inch Size	1/2.7
Color Type	Color / Monochrome
Resolution	8 MP
Digital (DSP)	Yes
Specialist Type	Infrared
Sensitivity Lux	0.007 Lux@F1.4 (Color, 30 IRE); 0.0007 Lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 3.7 W (12 V DC), 5.4 W (PoE)
Motion Activated	Yes
Focal Length mm	2.8; 3.6
Mount Type	Pole, Corner
Wide Dynamic Range	Yes
Picture Elements HxV	3840 x 2160
Network Properties	Image Frame Rate: 1 ~ 25/30 fps Inclusion DVR/ Web Server: Yes Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3s ~ 1/100,000s
S/ N (Signal/ Noise) Ratio dB	> 56
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG
Physical Specifications	Weight g: 610 Dimensions mm: 193 x 71 x 66
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -40 ~ 60 C (-40 ~ 140 F) Operating Humidity %: ≤ 95
System Requirements	Web Browser: Chrome, IE11, Firefox
HD	Yes
Additional info	8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image Outputs max. 8 MP (3840 ×2160)@25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic 12 VDC/PoE power supply IP67 protection SMD (smart motion detection) 4.0 Supports AI SSA SMD area can be set in warm light areas that support triggering alarms
