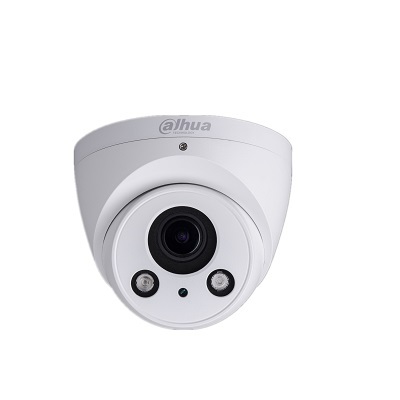

Dahua Technology IPC-HDW2221R-ZS 2MP IR Eyeball Network Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: IPC-HDW2221R-ZS
- Series: Lite series
- Chip Inch Size: 1/3
- Color Type: Color / Monochrome
Additional info:
1/2.7” 2Megapixel progressive CMOS H.264+ & H.264 dual-stream encoding 25/30fps@2M (1920×1080) · WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Micro SD card slot, up to 128GB 2.7~12mm varifocal lens
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP Dome cameras |
| Model code | IPC-HDW2221R-ZS |
| Chip Inch Size | 1/3 |
| Color Type | Color / Monochrome |
| Resolution TVL | 2MP |
| Megapixel | Yes |
| Sensitivity lux | 0 ~ 0.1 |
| Indoor/Outdoor | Outdoor |
| Digital (DSP) | Yes |
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: 9.8 W |
| Focal length | 2.7 ~ 12mm |
| Compression | H.264+, H.264 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/3(4) ~ 1/100000s |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Built-in IR LED | Yes |
| Zoom Ratio | x16 |
| Network Properties |
Interface: RJ-45 (10/100Base-T) Network Protocols: HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP; Image Frame Rate: 25 ~ 30 fps |
| Physical Specifications |
Dimensions mm: 122 x 105 Weight g: 590 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95 Protection: IP67 |
| System Requirements | Web Browser: IE, Chrome, Firefox, Safar |
| Additional info |
|
